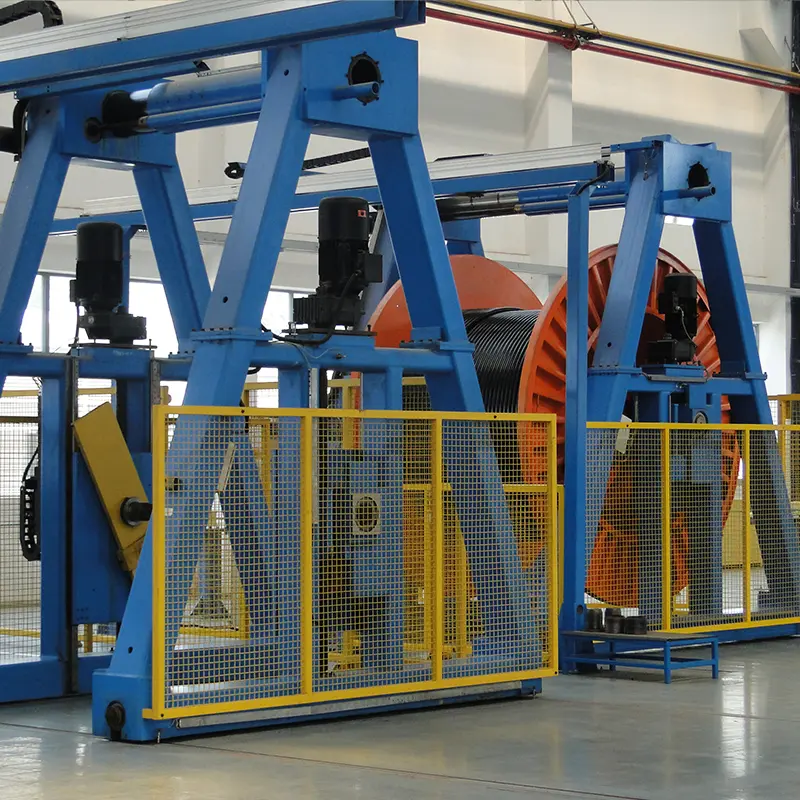

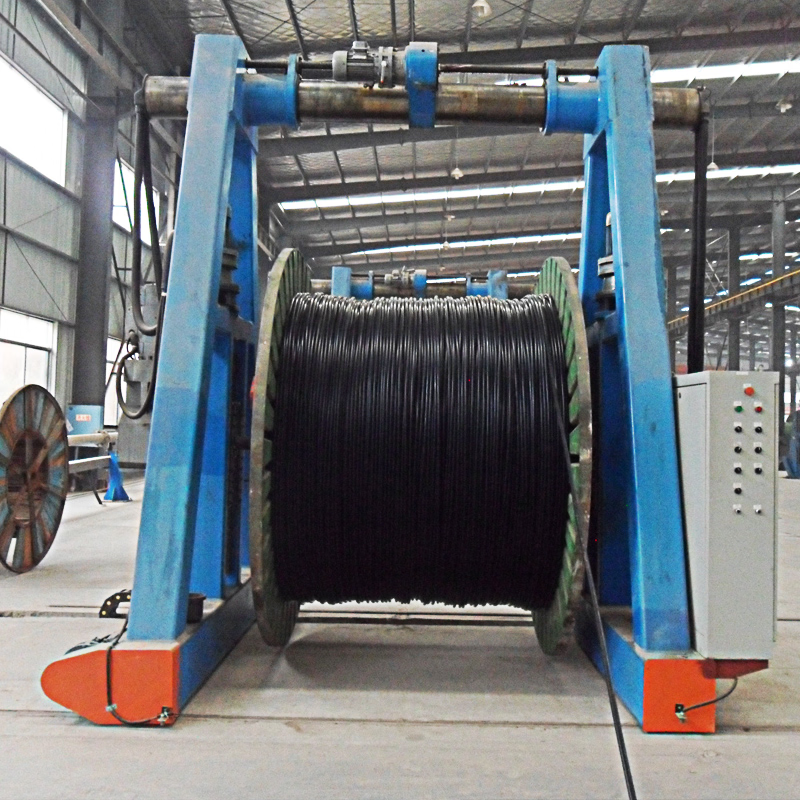

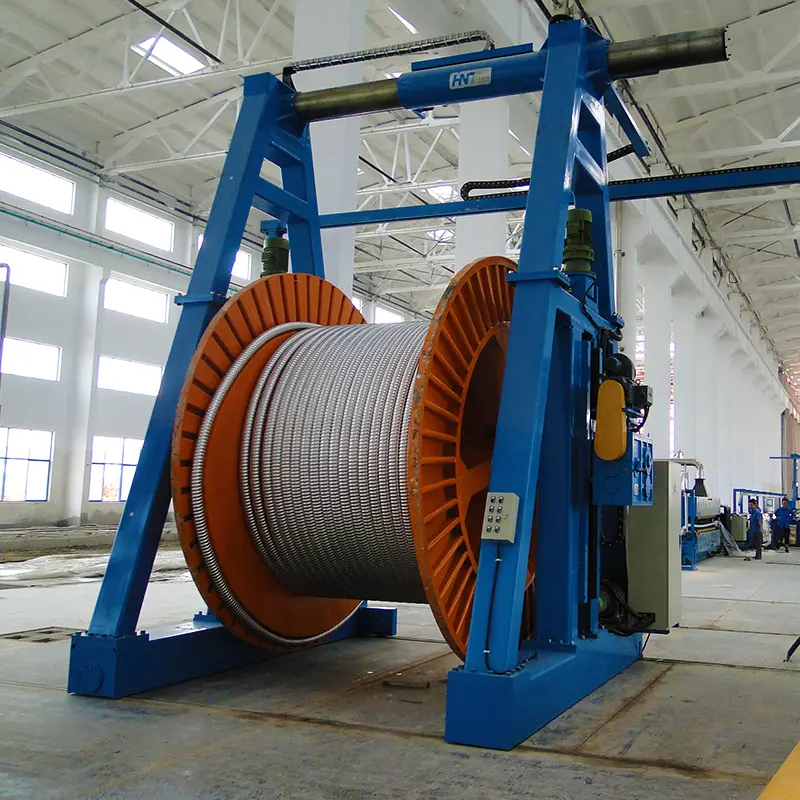

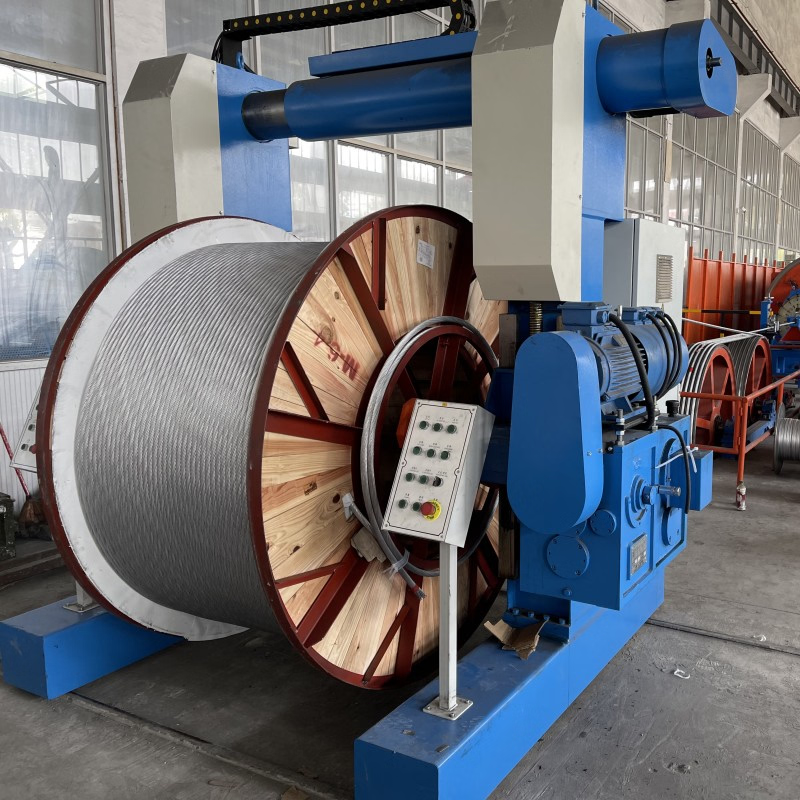

Wire dispensing and winding gantry crane

Product Introduction

The Cable Pay-Off and Take-Up Gantry is a specialized mechanical equipment designed for efficient unwinding and winding of power cables, conductors, and wires during cable laying, installation, and maintenance operations. The gantry structure provides stable support for large and heavy cable drums, ensuring smooth, controlled cable pay-off and take-up with high safety and operational efficiency.

This equipment is widely used in power transmission and distribution projects, cable manufacturing plants, construction sites, and infrastructure installations. It is suitable for handling various drum sizes and cable types, making it an essential tool for improving productivity and reducing labor intensity in cable installation and handling processes.

Key Selling Points

1. Strong Structural Design with High Load Capacity

The cable pay-off and take-up gantry is constructed with high-strength steel and a reinforced frame structure, ensuring excellent stability and load-bearing capacity. It is designed to support large and heavy cable drums without deformation, even under continuous operation and high tension conditions.
The gantry-type design distributes the load evenly, reducing stress on individual components and enhancing overall safety. This robust structure allows the equipment to perform reliably in demanding environments such as construction sites, power projects, and industrial facilities.

2. Smooth Operation and Improved Work Efficiency

Equipped with precision bearings and a stable rotation system, the gantry ensures smooth and uniform cable pay-off and take-up, effectively preventing cable twisting, tangling, or sudden tension changes. This controlled operation helps protect the cable surface and internal structure, reducing the risk of damage during installation.
By minimizing manual handling and improving operational efficiency, the cable gantry significantly reduces labor requirements and installation time. It enables faster project progress while maintaining consistent cable quality and safety standards.

3. Wide Compatibility and Easy Installation

The cable pay-off and take-up gantry is designed to accommodate various cable drum diameters, widths, and cable types, offering strong adaptability for different project requirements. Adjustable components allow quick setup and flexible configuration on site.
The equipment features a modular and simple installation design, making it easy to assemble, disassemble, and transport. This reduces logistics and setup costs while providing a practical and cost-effective solution for cable handling in power engineering and infrastructure projects.
